04 Model HX

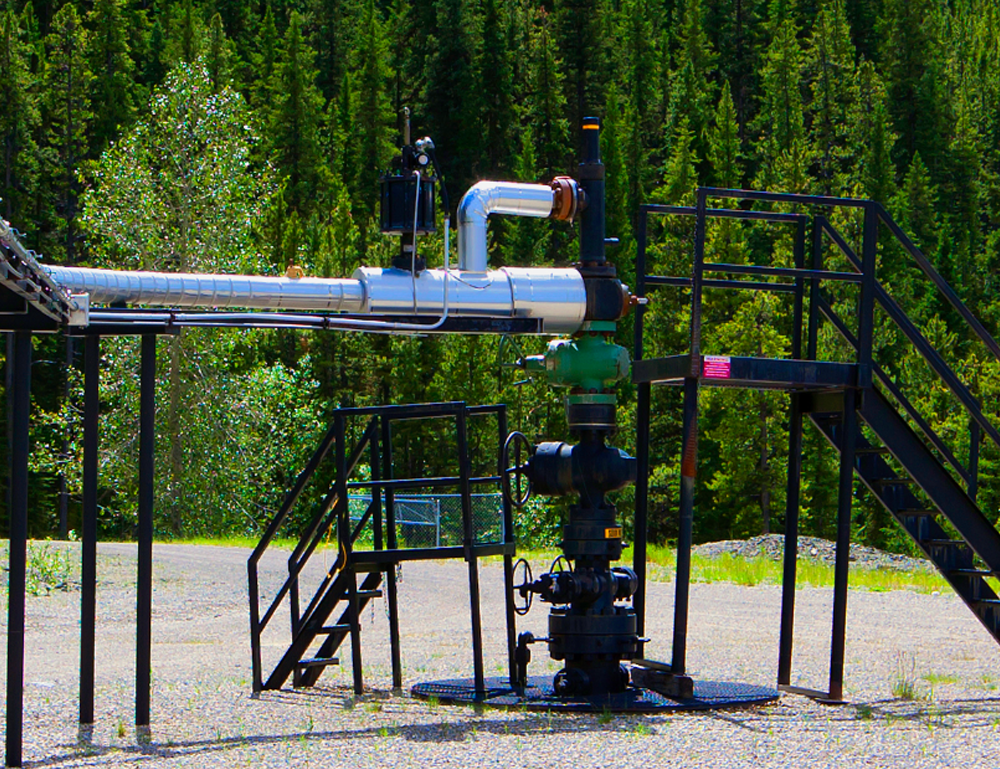

We can provide Model HX actuators already mounted on valves and ready to deploy, or as actuated bonnet assemblies ready to mount on valves from other manufacturers.

Omni also offers a full range of accessories including standard & fusible manual overrides, position indicators and fusible lock open devices.

Available Sizes

Model Size Stroke
HX 20 2 1/2" Up to 2 9⁄16” bore
HX 30 3 1/2" Up to 4 1⁄16” bore
HX 40 4 1/2" Up to 4 1⁄16” bore
HX 60 6 1/2" Up to 7 1⁄16” bore
HX 90 9" Up to 7 1⁄16” bore
HX 110 11" Up to 7 1⁄16” bore

Specifications

Maximum Operating Pressure 4,000 PSI Pressure relief device is set at 4,000 PSI
API Material Class AA / BB / CC N/A if control source contains H2S (is sour)
API Temperature Rating P (-20 F to 180 F) (-29 C to 82 C)
Full Brochure
Show Parts List

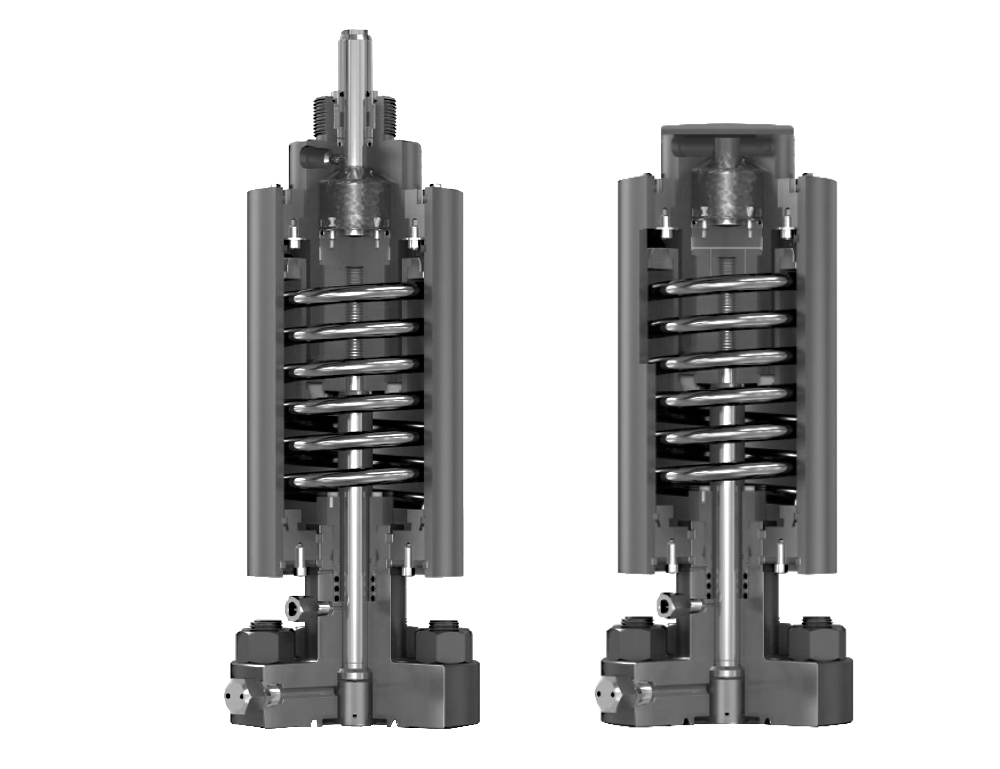

Internal Configuration

Actuator depicted with typical 10,000 / 15,000 psi bonnet
Model HX


⇐  Model PMX    /    Model HWX

HX - Cycling Process Video
