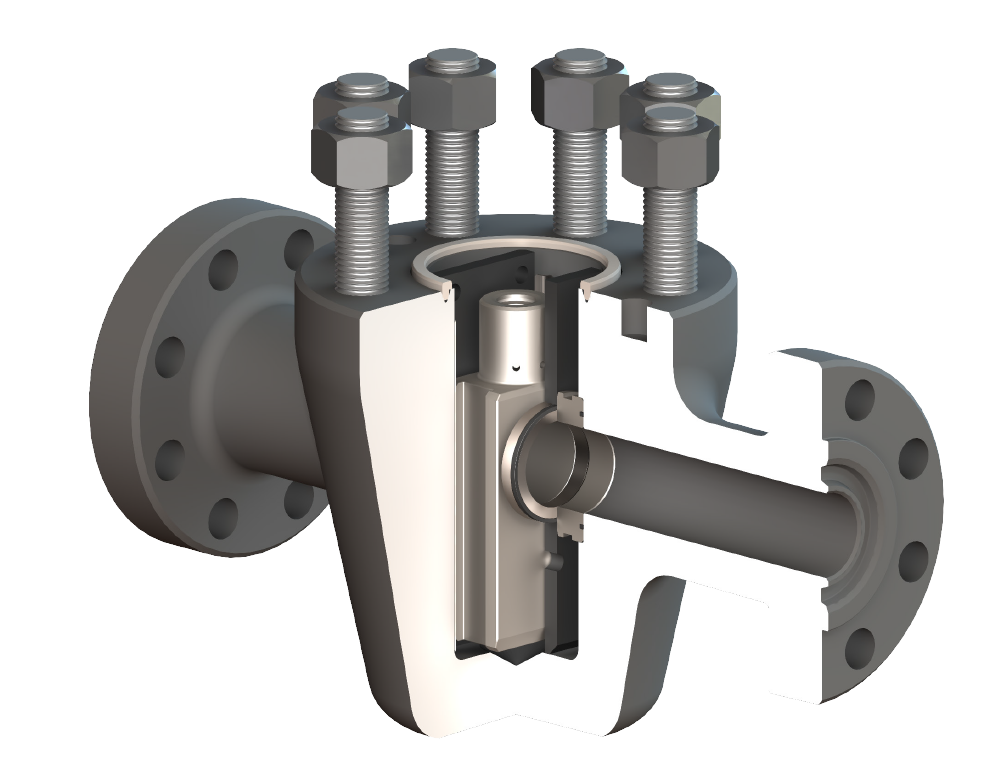

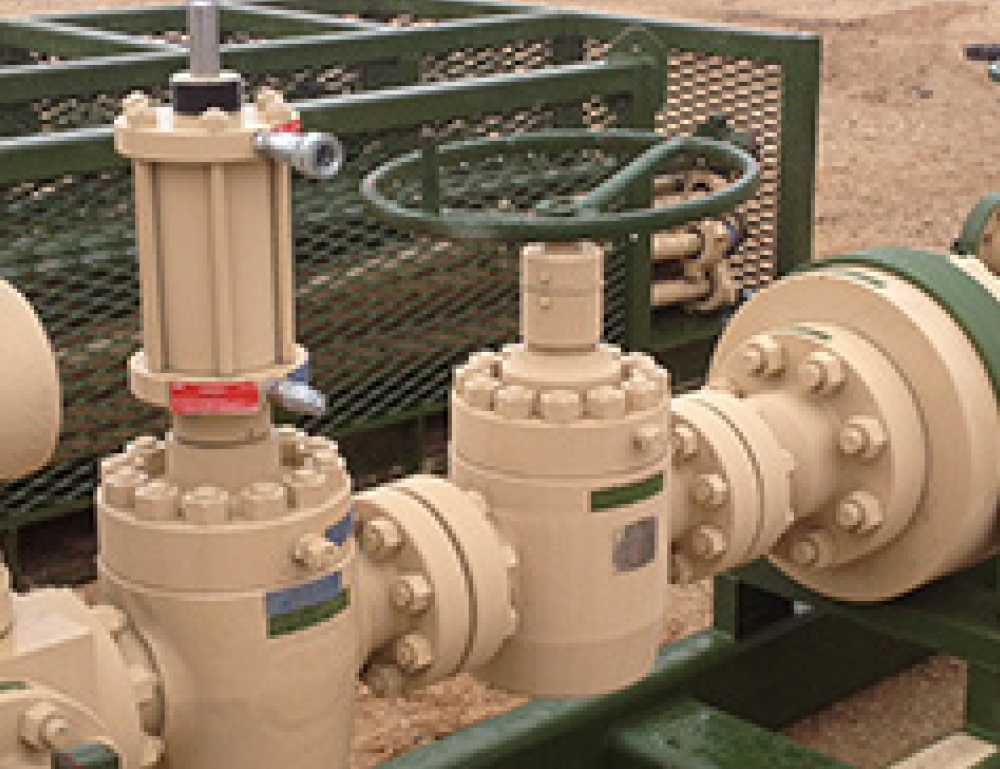

Expanding & Slab
Gate Valves

For oil and natural gas wellhead, flowline, manifold, fracture or other critical service applications requiring operating pressures from 2,000 to 15,000 psi

Approved valve for major E&P companies

Gate Valve Brochure

  • 08

    Model CX

    • For 2,000–3,000–5,000 psi Service
    • Bore Sizes Ranging from 2-1/16" through 7-1/16"
    • Expanding Gate - Field Replaceable
    • Chevron Style Stem Packing
    • Slip-Fit Seat Design

    • Gate Valve
      Brochure
    Model CX
  • 09

    Model CSR

    • For 2,000–3,000–5,000 psi Service
    • Bore Sizes Ranging from 2-1/16" - 7-1/16"
    • API 6A Temperature ratings of L (-50 F) - Y (650 F).
    • Expanding Gate - Field Replaceable
    • Slip-Fit Seat Design

    • Gate Valve
      Brochure
    Model CSR
  • 10

    Model FS

    • For 2,000–3,000–5,000 psi Service
    • API 6A Temperature ratings of L (-50 F) - Y (650 F)
    • Expanding Gate - Field Replaceable
    • Chevron Style Stem Packing
    • Bore Sizes 2-1/16" through 7-1/16"

    • Gate Valve
      Brochure
    Model FS
  • 11

    Model FSR

    • For 2,000–3,000–5,000 psi Service
    • API 6A Temperature ratings of L (-50 F) - Y (650 F)
    • Expanding Gate - Field Replaceable
    • Chevron Style Stem Packing
    • Bore Sizes 2-1/16" through 7-1/16"

    • Gate Valve
      Brochure
    Model FSR
